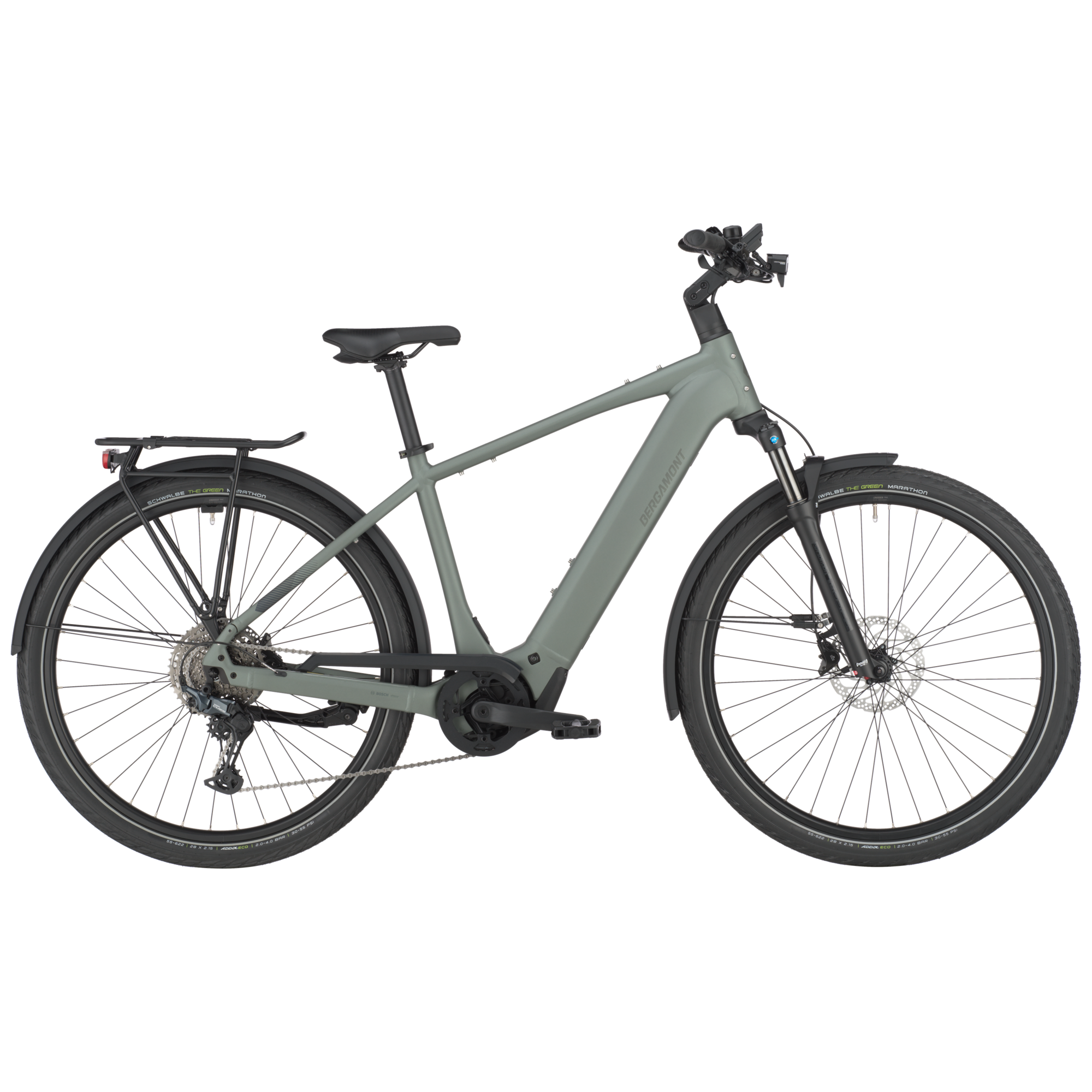

Bergamont E-Horizon Sport 10 E-bike trekking

Description

The E-Horizon Sport is a fully equippede-trekking bike with perfectly integrated components. It is equipped with features such as LED lights with a rear stop light function, which increase rider safety in urban environments. The rear rack is approved for 27 kg and for transporting children, in combination with the Thule Yepp 2 Maxi child seat. The classic derailleur drive ensures efficient pedaling and precise gear changes with a proven lightweight concept, while hydraulic disc brakes offer superior braking power and excellent modulation even in adverse weather conditions.

The Bosch Performance Line CX electric drive system offers powerful and long-lasting assistance, giving you the freedom to explore beyond your usual routes.

The high-capacity Bosch PowerTube battery, integrated into the frame, can be removed for external charging, while the battery cover remains on the bike to protect the empty housing from the elements. With the Bosch Smart System, advanced connectivity features and upgrades are available: use the eBike Flow app to control your bike or add optional accessories such as the Bosch PowerMore battery to increase range.

Technical Specifications – Bergamont E-Horizon Sport 10

Frame

• 28″, super lightweight AL-6061 aluminum, integrated PowerTube tubing for battery

Fork

• Suntour Mobie 34 Air, 100 mm travel, 15×110 mm pivot

Motor

• Bosch Smart System, Performance Line CX (BDU384Y)

• 250 W, 36 V, assistance up to 25 km/h

Battery

• Bosch PowerTube, 36 V, Li-Ion, 800 Wh

Display / Screen

• Bosch Kiox 300 with LED remote control

Charger

• Bosch Standard Charger, 4A

Transmission

Rear derailleur

• Shimano Cues RD-U8000, Shadow Plus

Gearshifts

• Shimano Cues SL-U8000, 1×11 speed, rapidfire plus

Crankset

• FSA CK-745, 170 mm, 38 teeth

Bottom bracket

• Bosch, Isis standard

Chain

• Shimano Linkglide CN-LG500

Cassette

• Shimano Cues CS-LG400-11, 11-45 teeth

Brakes

Brake Levers

• Shimano BL-MT402, hydraulic disc brake

Brakes

• Shimano BR-MT410, hydraulic disc brake

Brake disc

• Shimano SM-RT30, 180 mm

Components

Handlebars

• Syncros 3.0, riser bar, backsweep 15°, rise 12 mm

Handlebar stem

• Satori Python, adjustable

Seatpost

• BGM Pro

Saddle

• Syncros Capilano Trekking

Headset

• Acros A-Headset, semi-integrated, with internal cable routing, tapered head tube

Wheels

Front hub

• Shimano HB-TC500-B, centerlock, disc, 15×110 mm axle

Rear hub

• Shimano FH-QC400, centerlock, disc, quick release

Spokes

• Stainless steel, black

Rims

• BGM Pro X17, for disc brakes, with eyelets

Tires

Front tire

• Schwalbe Marathon Performance GreenGuard, reflective strip, 55-622

• Inner tube: Schwalbe AV19B Light

Rear tire

• Schwalbe Marathon Performance GreenGuard, reflective band, 55-622

• Inner tube: Schwalbe AV19B Light

Lights and Accessories

Lights

• Front: 100 Lux LED

• Rear: Axa Juno LED with stop light function

Roof rack

• Racktime / BGM Trekking Pro, Snapit 2.0 system

• Approved up to 27 kg and compatible with Thule Yepp 2 Maxi child seat

Pedals

• Marwi SP-827, sandblasted

Kickstand

• Syncros U-Mount

Mudguard

• Curana Orbit with stainless steel rods

Chain cover

• Integrated in the crankcase

Knobs

• Syncros Urban Ergo, dual density, lock-on

Weight

• Bike weight (approximate): 28.2 kg

• Total allowed weight (bike + rider + equipment + luggage): 160 kg
