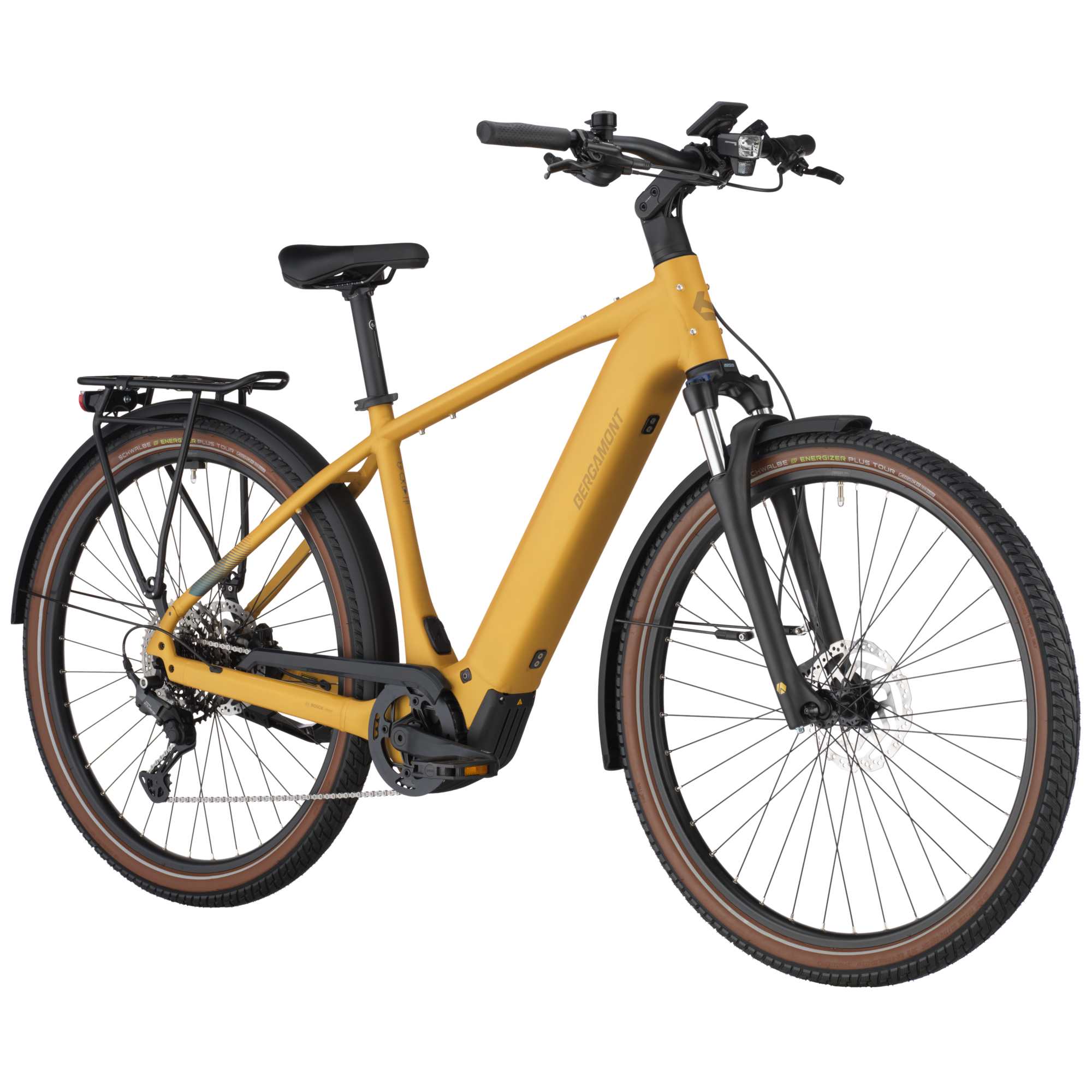

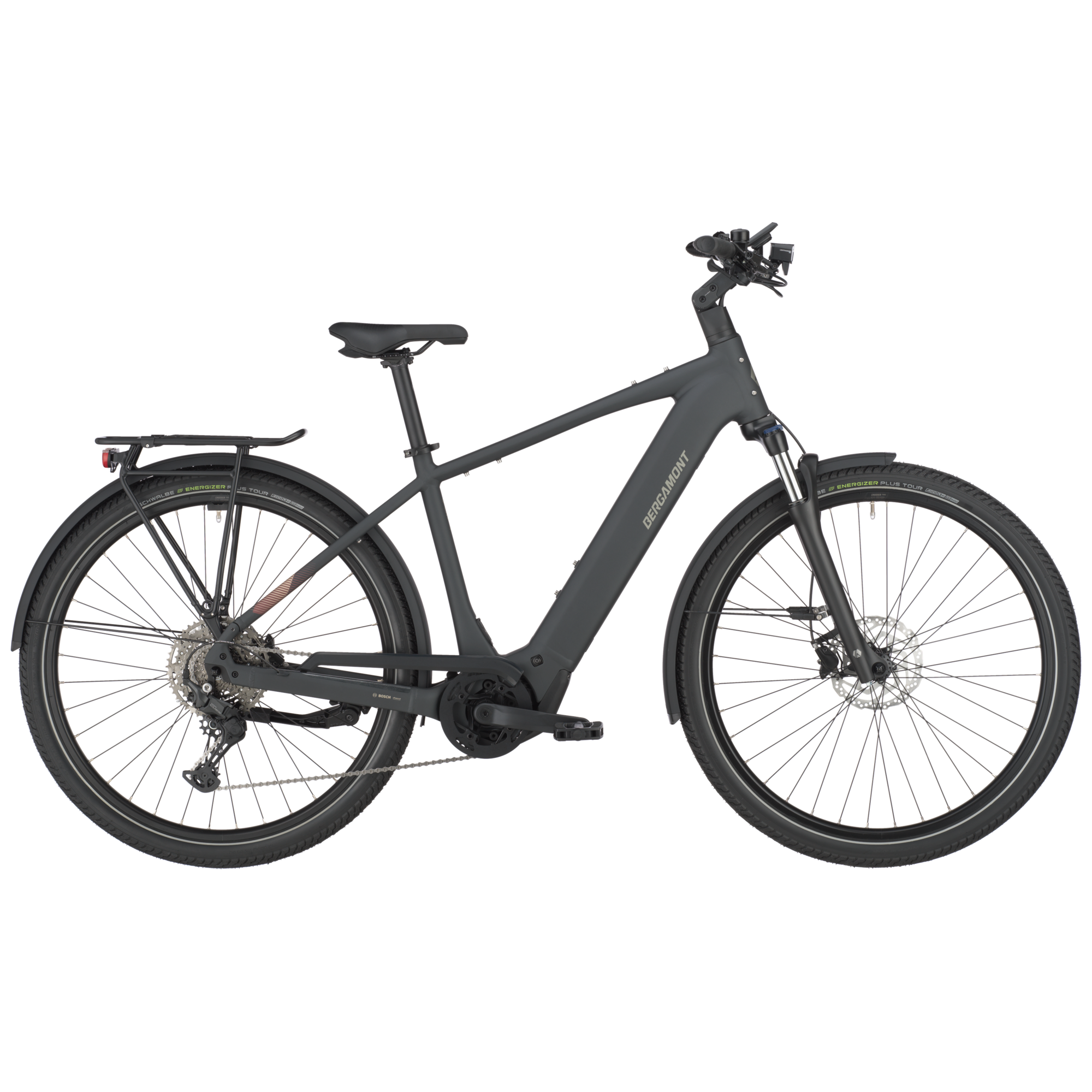

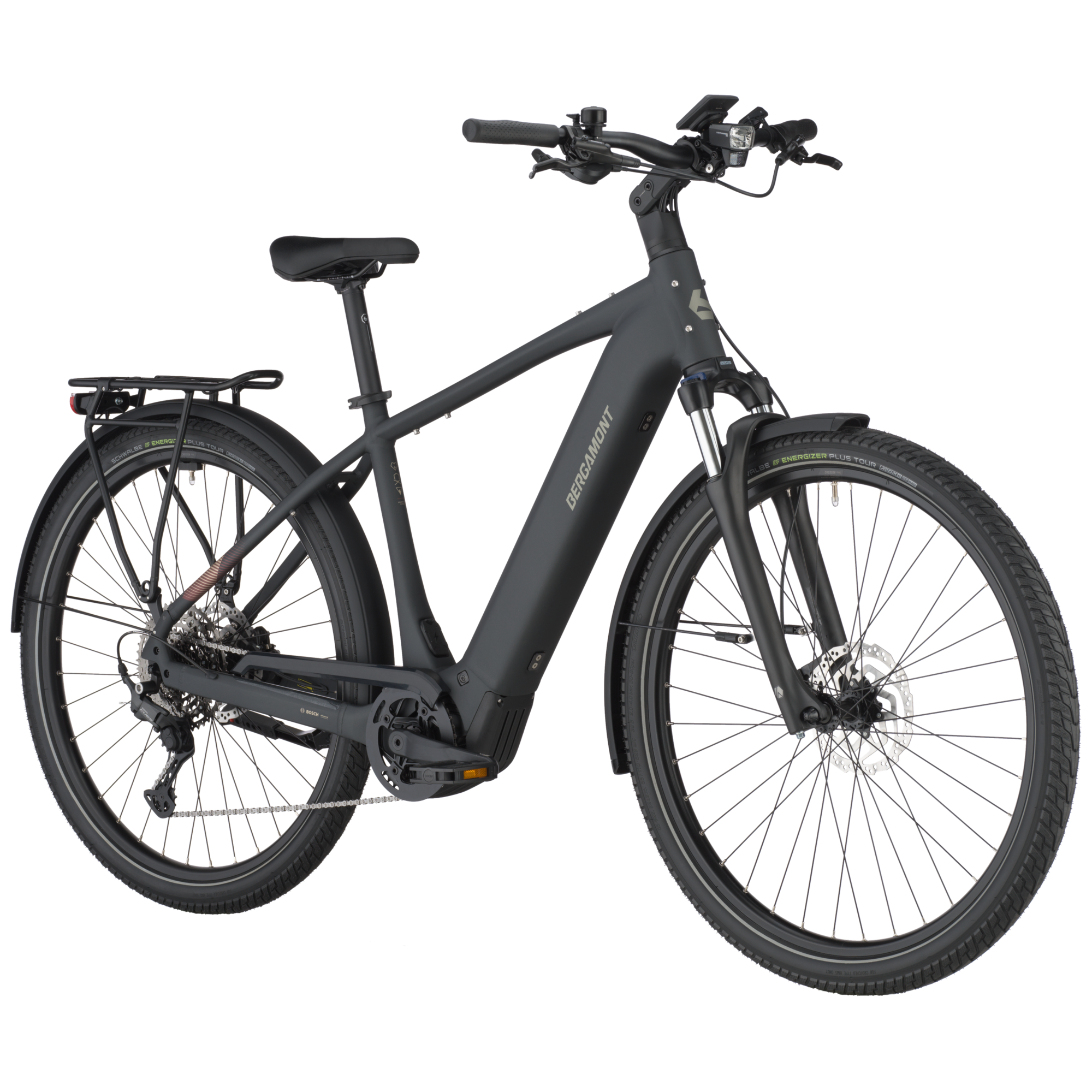

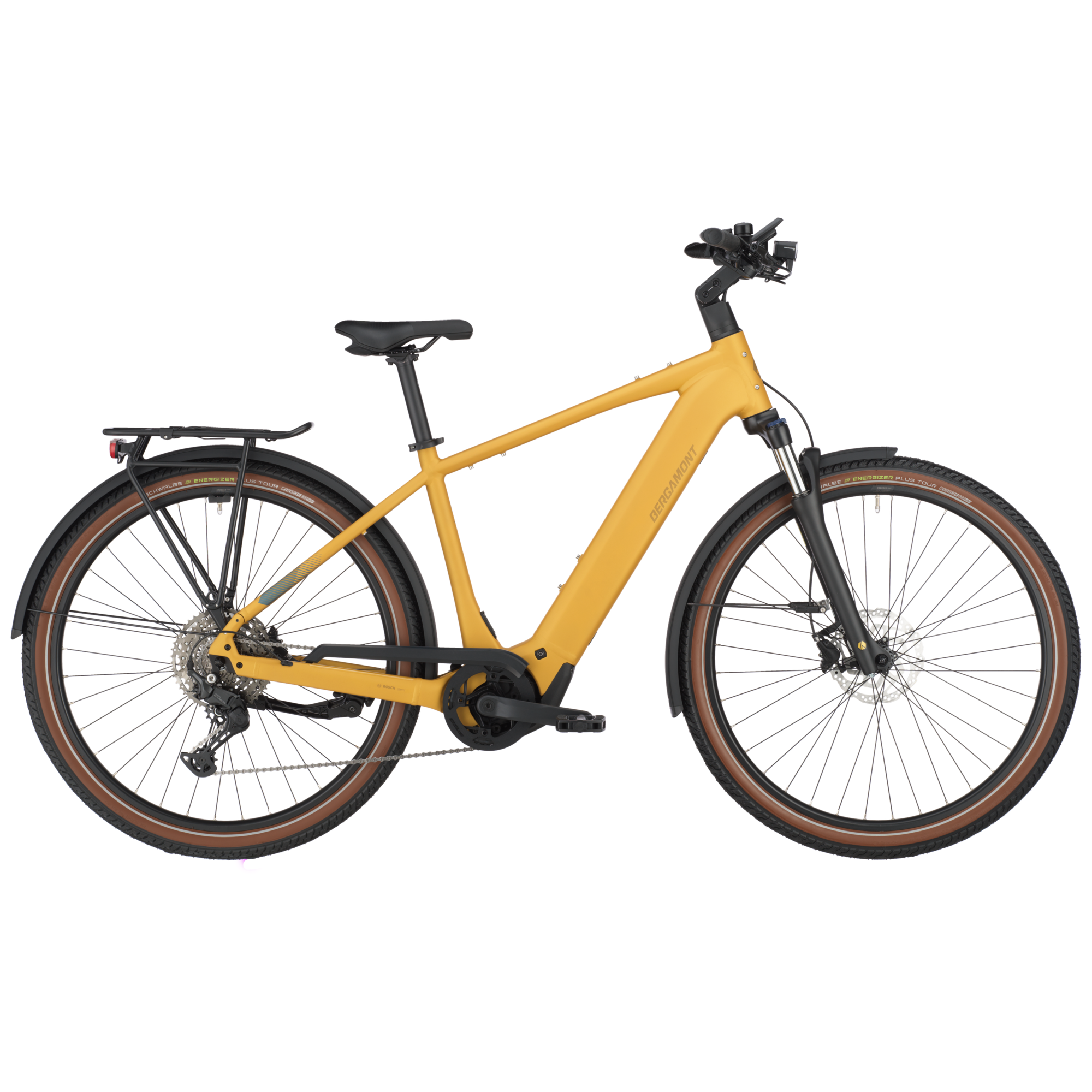

Bergamont E-Horizon Sport 20

Description

The E-Horizon Sport is a fully equipped e-trekking bike with perfectly integrated components.
It is equipped with LED lights with a rear stop light function, enhancing cyclist safety in urban environments.
The rear rack is approved for 27 kg and for transporting children, in combination with the Thule Yepp 2 Maxi child seat.

The classic derailleur drivetrain provides efficient pedaling and precise gear changes with a proven lightweight system.
Shimano hydraulic disc brakes ensure high braking power and consistent modulation even in adverse weather conditions.

The Bosch Performance Line CX motor, part of the Bosch Smart System, offers powerful and long-lasting assistance, allowing you to explore new routes with ease.

The high-capacity Bosch PowerTube battery, integrated into the frame, is removable for external charging, while the cover remains on the bike to protect the empty housing from the elements.
With the Bosch Smart System, advanced connectivity features and upgrades are available: via the eBike Flow app, you can manage the bike or add optional accessories such as the Bosch PowerMore battery to increase range.

Usage: (trekking/advanced urban use) – urban electric bike

Technical Specifications.

Frame

• 28″, super lightweight aluminum AL-6061, with integrated PowerTube battery

Fork

• Suntour NVX 30 DS NLO, 75 mm travel

Motor

• Bosch Smart System, Performance Line CX

• 250 W, 36 V, assistance up to 25 km/h

Battery

• Bosch PowerTube, 36 V, Li-Ion, 600 Wh

Display / Screen

• Bosch Intuvia 100 with LED remote control

Charger

• Bosch Standard Charger, 4A

Transmission

Rear derailleur

• Shimano Cues RD-U6000, Shadow Plus

Gearshifts

• Shimano Cues SL-U6000, 1×10-speed, rapidfire plus

Crankset

• FSA CK-745, 170 mm, 38 teeth

Bottom bracket

• Bosch, Isis standard

Chain

• Shimano Linkglide CN-LG500

Cassette

• Shimano Cues CS-LG400-10, 11-48 teeth

Brakes

Brake levers

• Shimano BL-MT200, hydraulic disc brake

Brakes

• Shimano BR-MT200, hydraulic disc brake

Brake disc

• Shimano SM-RT10, 180 mm

Components

Handlebars

• Syncros 3.0, riser bar, backsweep 15°, rise 12 mm

Handlebar stem

• Satori Python, adjustable

Seatpost

• BGM Pro

Saddle

• Syncros Capilano Trekking

Headset

• Acros A-Headset, semi-integrated, with internal cable routing and tapered head tube

Wheels

Front hub

• Shimano HB-MT200, centerlock, disc, quick release

Rear hub

• Shimano FH-QC400, centerlock, disc, quick release

Spokes

• Stainless steel, black

Rims

• BGM Pro X17, for disc brakes, with eyelets

Tires

Front tire

• Schwalbe Energizer Plus Tour, Performance, GreenGuard, reflective strip, 55-622

• Inner tube: Schwalbe AV19B Light

Rear tire

• Schwalbe Energizer Plus Tour, Performance, GreenGuard, reflective band, 55-622

• Inner tube: Schwalbe AV19B Light

Lights and Accessories

Lights

• Front: Trelock LS830, LED 80 Lux

• Rear: Axa Juno LED with stop light function

Roof rack

• Racktime / BGM Trekking Pro, Snapit 2.0 system

• Approved for 27 kg, compatible with Thule Yepp 2 Maxi child seat

Pedals

• Marwi SP-827, sandblasted

Kickstand

• Syncros U-Mount

Mudguard

• Curana Orbit with stainless steel rods

Chain cover

• Integrated in the crankcase

Knobs

• Syncros Urban Ergo, dual density, lock-on

Weight

• Bike weight (approximate): 29.2 kg

• Total allowed weight (bike + rider + equipment + luggage): 130 kg
