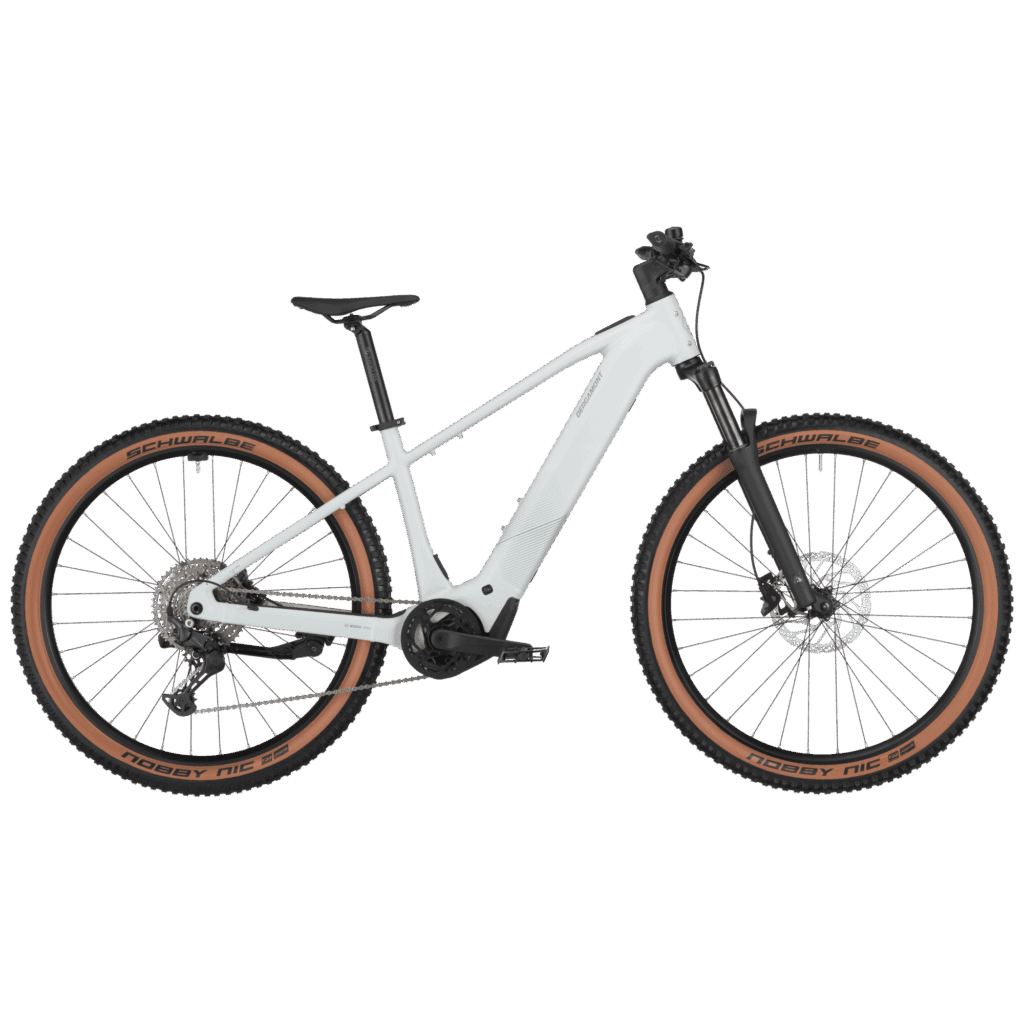

Bergamont E-Revox Sport 20 – Demo Bike

Description

This sporty e-mountain hardtail bike is equipped with a 120 mm shock-absorbing fork and 29″ wheels for a smooth and comfortable ride even off-road. The Bergamont E-Revox Sport offers everything you need for a perfect day on the trails: the lightweight and proven classic derailleur drivetrain ensures efficient pedaling and quick gear changes for fast off-road riding, while hydraulic disc brakes provide superior stopping power and modulation even in adverse weather conditions.

The Bosch Performance Line CX electric drive system provides powerful, long-lasting assistance, giving you the freedom to explore beyond your usual routes and push your limits.

The high-capacity Bosch PowerTube battery, integrated into the frame, can be removed for external charging, while the cover remains mounted on the bike to protect the empty battery compartment from the elements. Advanced connectivity features and upgrades are available with the Bosch Smart System: you can use the eBike Flow app to control the bike or add optional accessories such as the Bosch PowerMore battery to increase range.

Specifications.

• Frame: 29″, super lite AL-6061 tubing, PowerTube battery

• Fork: Suntour XCM34 DS LO, 120 mm, return adjustment, 15×110 mm pivot

• Motor: Bosch Smart System, Performance Line CX, 250 W, 36 V, max. 25 km/h

• Battery: Bosch PowerTube, 36 V Li Ion, 600 Wh

• Screen: Bosch Purion 200

• Charger: Bosch Standard Charger, 4A

• Rear derailleur: Shimano Cues, RD-U6000, Shadow Plus

• Gearshifts: Shimano Cues, SL-U6000, 1×10-speed, rapidfire plus-shifter

• Crankset: FSA CK-220, 165 mm, 34t

• Bottom bracket: Bosch, Isis

• Chain: Shimano Linkglide, CN-LG500

• Cassette: Shimano Cues, CS-LG400-10, 11-48t

• Brake levers: Shimano BL-MT4100, hydraulic disc brake

• Brakes: Shimano BR-MT410, hydraulic disc brake

• Brake disc: Front: Shimano SM-RT30, 203 mm – Rear: Shimano SM-RT30, 180 mm

• Handlebar: Syncros Hixon 2.0, mini riserbar, rise: 15 mm, width: 740 mm

• Stem: Syncros AM 2.0, 0°

• Seatpost: Syncros M3.0

• Saddle: Syncros Tofino 2.5

• Headset: Acros, A-Headset, semi-integrated, tapered, with integrated cable routing

• Front hub: Shimano HB-TC500-B, centerlock, disc, 15×110 mm axle

• Rear hub: Shimano FH-TC500, centerlock, disc, 12×148 mm axle

• Spokes: stainless steel, black

• Rim: Cross X18, disc, with eyelets, width: 30 mm

• Front tire: Schwalbe Nobby Nic, Performance, Addix, 65-622 – Chamber: Schwalbe SV19FB Light

• Rear tire: Schwalbe Nobby Nic, Performance, Addix, 65-622 – Chamber: Schwalbe SV19FB Light

• Pedals: MTB alloy

• Weight: approx. 25.8 kg

• Knobs: Syncros MTB Comfort, lock-on

• Total weight allowed: 130 kg
  (total weight includes bike, rider, equipment and any additional luggage)
