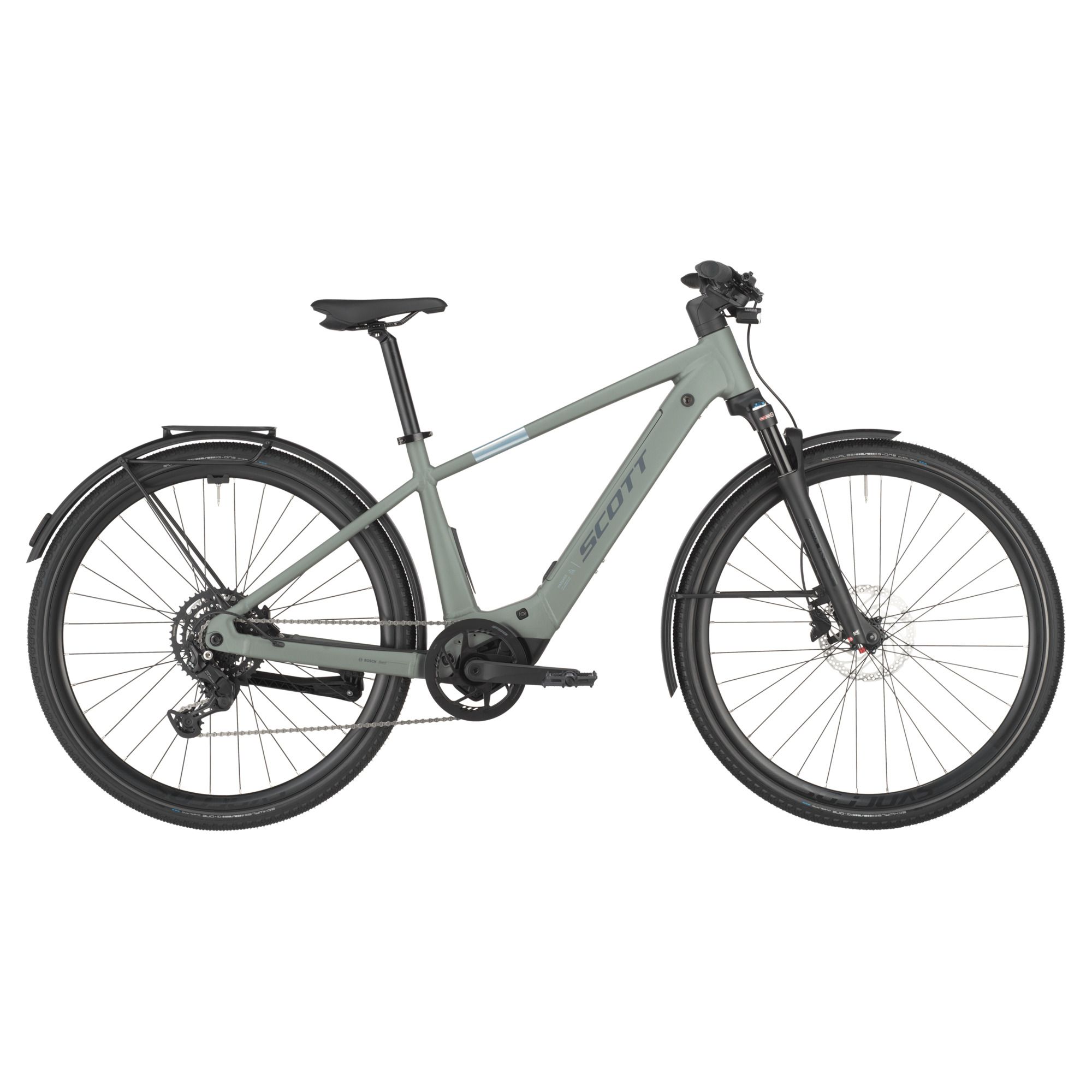

SCOTT Passage 30 Electric Bike

Riding a bike every day is a real joy. SCOTT Passage 30 E-bike
#The Passage eRIDE is SCOTT’s newest urban e-bike designed for easy, hassle-free city riding.
#Equipped with the lightweight Bosch SX motor and 400 Wh battery, it gives you a lightweight feel as you pedal, giving you the power to go further. A clean cockpit and minimalist rear rack complete the picture, adding even more style to the Passage.
#With the Passage crossing the city just got easier.

TECHNICAL SPECIFICATIONS

• Frame

  Alloy S-XL=29″ / 6061 Alloy custom butted tubing
  Top extraction battery

• Excursion

  75mm

• Fork

  SR Suntour NRX32-E Air LO R / Tapered / 15×100 bolt Axle / Remote Lock Out / Steel Steerer / 75mm Travel

• Motor

  Bosch Performance SX
  EU: 25kmh

• Battery

  Compact Tube 400Wh

• Screen

  Bosch Purion 200

• Charger

  2A Charger

• Rear Derailleur

  Shimano CUES RDU4000GS 9 Speed

• Gearshifts

  Shimano CUES SLU4009RC / 9 Speed

• Crankset

  FSA CK-220 170mm

• Chain guide

  Syncros

• Sprocket

  FSA 38T

• Chain

  Shimano LG500

• Cassette

  Shimano LG300 / 11-46T

• Brakes

  Shimano BR-MT200 Disc

• Brake Disc

  Front: SM-RT30 CL 180mm / Rear: SM-RT30 CL 160mm

• Handlebars

  Syncros Welded Alloy Combo 680mm / Backsweep 9° / Upsweep 8° / 70mm / with front Light mount

• Seatpost

  Syncros M3.0 / 31.6

• Saddle

  Syncros Capilano

• Headset

  Acros / 1.5″- 1.5″
  semi-integ. OD 50/61mm / ID 44/55mm

• Front hub

  Shimano HBTC50015B CL / 15x100mm

• Rear hub

  Shimano FHTC500HMB CL / 12x142mm

• Spokes

  Black Spokes

• Rim

  Syncros X15 Disc

• Front tire

  Schwalbe G-One Overland 365 Performance
  700x45C

• Rear tire

  Schwalbe G-One Overland 365 Performance
  700x45C

• Lights

  Lezyne Fusion E550SM front light
  Rear Supernova TL3Z

• Roof rack

  Racktime Micro Rack SnapIt 2.0 8KG

• PEDALS

  Marwi SP-827

• Extra

  Alumee alloy profile Fender / Hebie Kickstand

• Weight in kg (approx.)

  21.8

• Weight in lbs (approx.)

  48.06

• Total weight

  130kg
  Total weight includes bike, rider, equipment, and potentially additional luggage
