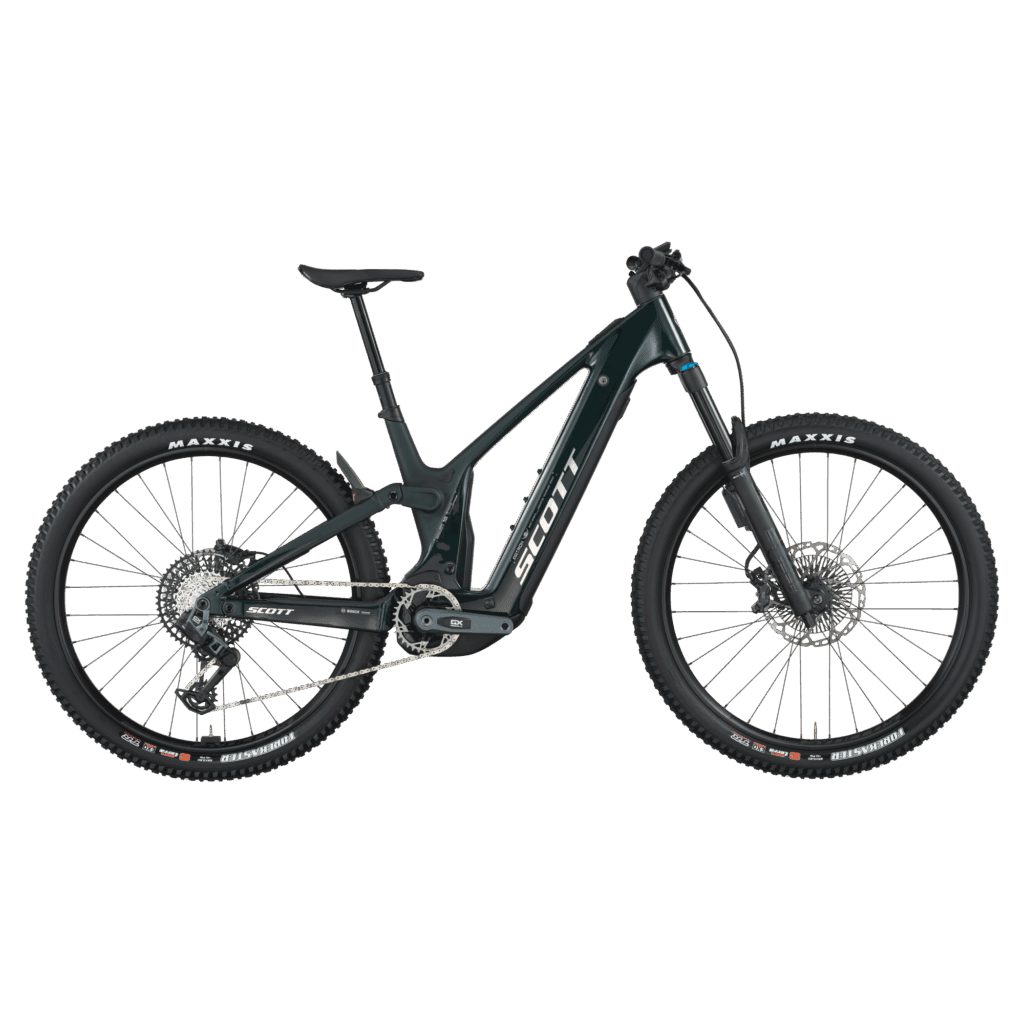

SCOTT Patron 900 2026 Electric Mtb

The best compromise. Do it all with the Patron eRIDE 900.
Ready to tackle any climb with ease and descend with a confident ride and handling that inspires confidence. 150 mm of front and rear travel devours the terrain, while our TracLoc technology allows you to adjust the suspension on the fly for an efficient ride in all conditions.

Thoughtful engineering and design make working on this e-bike super easy, thanks to smart integration, an easily removable battery and excellent shock access. The cover keeps everything clean, reducing maintenance intervals.

Being an e-bike, the Bosch CX drive unit offers up to 100 Nm of power, while the 800 Wh battery gives you the range to conquer any outing, from quick rides when you’re short on time to epic all-day adventures. The decision is yours.

SCOTT Patron 900 Technical Specifications

• Frame

  Carbon Main Frame, Alloy SST-CST
  Integrated Suspension Technology
  Virtual 4 Link kinematic, Adjustable head angle
  Syncros Cable Integration System
  Bosch Smart System, UDH Interface, 12x148mm with 55mm Chainline, Bosch PowerMore Ready, Kickstand mount

• Excursion

  Front: 150mm, Rear: 150mm

• Fork

  FOX 36 Perf. Air, eMTB+, Grip, 3Pos Microadj., Reb Adj., QR Axle 15x110mm axle
  44mm offset, tapered steerer, 150mm travel

• Rear shock absorber

  FOX NUDE 6T EVOL Trunnion
  SCOTT custom w. travel, geo adj.
  Low Speed Adj., Custom large Air volume, Reb. Adj.
  3 modes: Lockout-Traction Control-Descend
  Bearing Hardware, Travel 150-100-Lockout, T185X55mm

• remote control

  SCOTT TracLoc 2 Technology
  Suspension & Dropper Remote
  3 modes

• Motor

  EU: 25kmh, INT: 20mph
  Bosch Performance Line CX (BDU384Y)

• Battery

  PowerTube 800Wh

• Screen

  Bosch System Controller, Mini Remote & Kiox 300

• Charger

  4A Charger

• Rear Derailleur

  SRAM GX Eagle AXS Transmission 12 Speed
  Wireless Electronic Shift System

• Shift Levers

  SRAM AXS Rocker Pod Controller

• Crankset

  SRAM GX Eagle, Alloy

• Chain Guide

  e*thirteen, e*spec Slider

• Sprocket

  SRAM Eagle Transmission 34T chainring

• Chain

  SRAM CN GX Eagle Transmission

• Cassette

  SRAM GX Eagle XS 1275 Transmission 10-52

• Brakes

  Shimano XT BR-M8220 4 Piston, Bosch ABS Pro

• Brake Disc

  Front: SM-RT66 220mm, Rear: SM-RT66 203mm

• Handlebars

  back sweep 8°, 780mm
  Syncros Hixon 1.5 Alloy 7050, Size S & M 15mm rise, Size L & XL 25mm rise
  Syncros Performance XC lock-on grips

• Stem

  Syncros AM 1.5
  Syncros Cable Integration System
  4° rise, 7050 Alloy, 31.8mm, 1 1/8″

• Seatpost

  Syncros Duncan Dropper Post 1.5s, Travel Adjust, 31.6mm
  S size 140mm, M size 180mm, L size 180mm, XL size 210mm

• Saddle

  Syncros Tofino-E 1.5 Regular
  Titanium rails

• Headset

  Syncros – Acros Angle adjust & Cable Routing HS System
  ZS56/28.6 – ZS56/40 MTB
  Stainless, +-0.6° head angle adjustment

• Front hub

  Formula DC-711, 15x110mm

• Rear hub

  Formula EHT-148S, Boost 148x12mm

• Spokes

  Stainless Black

• Rim

  Syncros MD30, 32H, 30mm, Pin Joint
  Tubeless ready

• Front tire

  Maxxis Forekaster 29×2.6″
  120TPI Foldable Bead
  EXO, TR Tubeless ready
  3C Maxx Terra

• Rear tire

  Maxxis Forekaster 29×2.6″
  120TPI Foldable Bead
  EXO, TR Tubeless ready
  3C Maxx Terra

• Lights

  Syncros integrated rear fender light
  Front Light Cable pre-installed

• Weight in kg (approx.)

  24.6

• Weight in lbs (approx.)

  54.23

• Total weight

  130kg
  Total weight includes bike, rider, equipment, and potentially additional luggage
