Description
The Patron eRIDE 920 is designed with a system optimized for day-long trail rides. Supreme integration and meticulously selected geometry combined with a powerful new Bosch drive unit offer more than just a great bike. Rather, what you get is a sublime experience up and down the mountain, over and over again. Patron eRIDE: Lead on the trails.

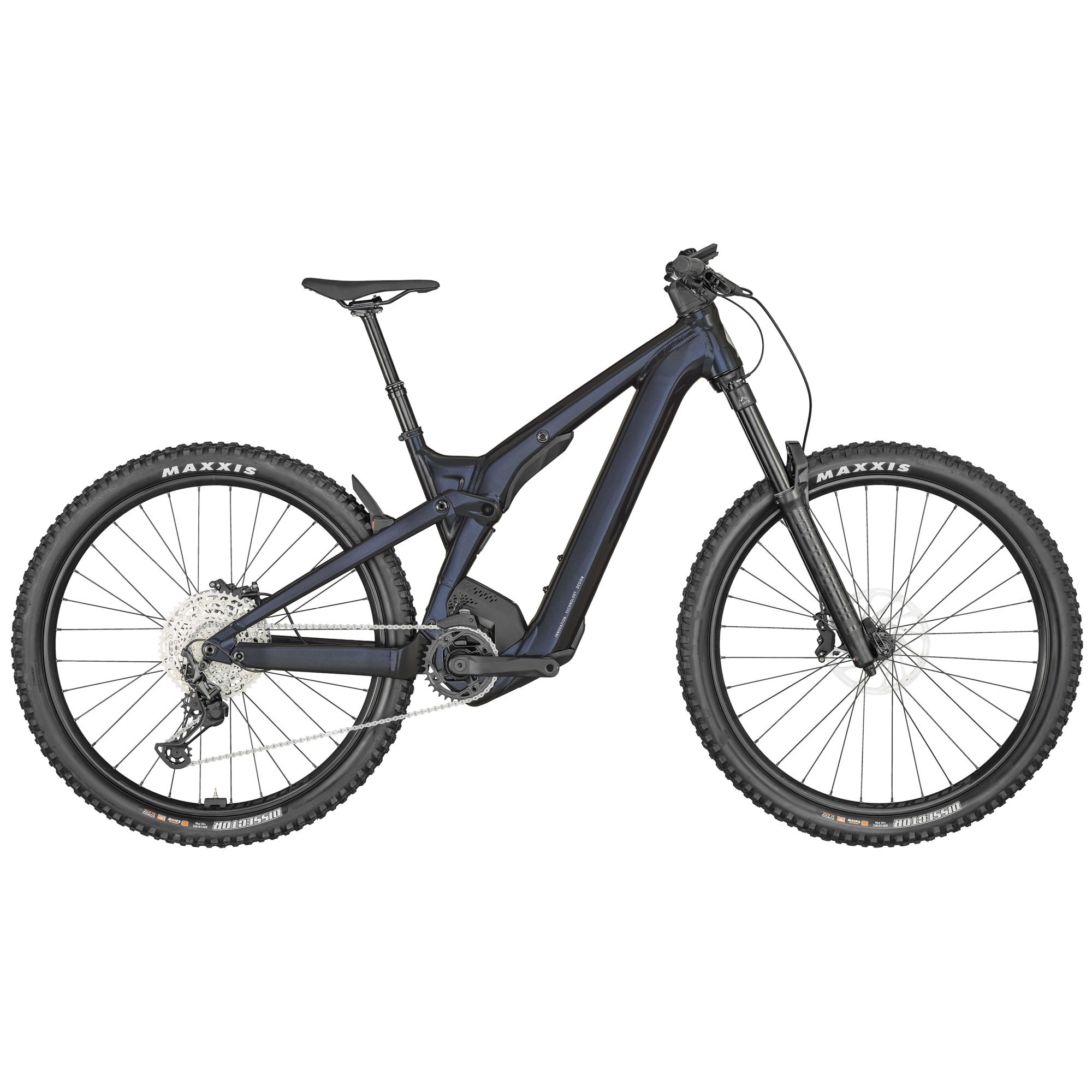

technical information sheet SCOTT PATRON ERIDE 920 Blue:
-
FRAME
Alloy Frame & Link
Virtual 4 link kinematic VLK
29×2.6 / Boost 148x12mm UDH
160mm travel / Bosch Gen4 / Integr. removable Battery
1.8″ Headtube, Central Kickstand Mount
Integr. Cable -
ESCURSION
Front: 160mm / Rear: 160mm -
FORK
RockShox Domain Air
15x110mm QR axle / 1.8″ Tapered Steerer
Reb. Adj. / 2 Modes / Lockout / 160mm travel / E-Bike -
REAR SHOCK ABSORBER
FOX Float EVOL eRIDE Trunnion
3 Modes / Lockout-Trail-Descend
DPS / Reb. Adj.
Travel 160mm / 205x60mm
-
REMOTE CONTROL
SCOTT TwinLoc 2 Technology
Suspension & Dropper Remote
3 modes -
ENGINE
Bosch Performance CX
EU: 25kmh / INT: 20mph -
BATTERY
PowerTube 750Wh -
SCREEN
Bosch LED Remote & Kiox 300 -
CHARGER
4A Charger -
REAR DERAILLEUR
Shimano XT / 12 Speed -
SHIFT LEVERS
Shimano SL-M6100 -
CRANKSET
FSA CK-745 165mm / 34T -
CHAIN GUIDE
e*thirteen / e*spec Slider -
CROWN
FSA W0138+WB499 / 34T / Steel
-
CHAIN
Shimano CN-M6100 -
CASSETTE
Shimano CS-M6100 / 10-51 T -
BRAKES
SRAM DB8 4 Piston Disc -
BRAKE DISC
Centerline CL Rotors 200mm F&R -
HANDLEBARS
Syncros Hixon 2.0 / Alloy 6061D.B.
12mm rise / 9° / 780mm
Syncros Endurance lock-on grips -
STEM
Syncros AM2.0 / 6061 Alloy
31.8mm / 4° / 1 1/8″ -
SEAT REGISELLA
Syncros Duncan Dropper Post 2.5
31.6mm / S size 125mm / M size 150mm / L size 170mm / XL size 200mm -
SADDLE
Syncros Tofino 2.5 Regular -
STEERING SERIES
Acros / 1.8″
ZS66 OD74 / integr. Cable -
FRONT HUB
Formula CL-811 / 15x110mm -
REAR HUB
Formula ECT-1481 / Boost 148x12mm -
SPOKES
Stainless Black -
RIM
Syncros MD30 / 32H / 30mm / Pin Joint
Tubeless ready -
FRONT TIRE
Maxxis Dissector 29×2.6″
120TPI Foldable Bead
EXO+ / TR Tubeless ready
3C Maxx Terra -
REAR TIRE
Maxxis Dissector 29×2.6″
120TPI Foldable Bead
EXO+ / TR Tubeless ready
3C Maxx Terra -
LIGHTS
Syncros integrated rear fender light
Front Light Cable pre-installed -
WEIGHT IN KG (APPROX.)
26.5 (with tubes) -
WEIGHT IN LBS (APPROX.)
58.42 (with tubes) -
TOTAL WEIGHT
128kg
Total weight includes bike, rider, equipment, and potentially additional luggage
