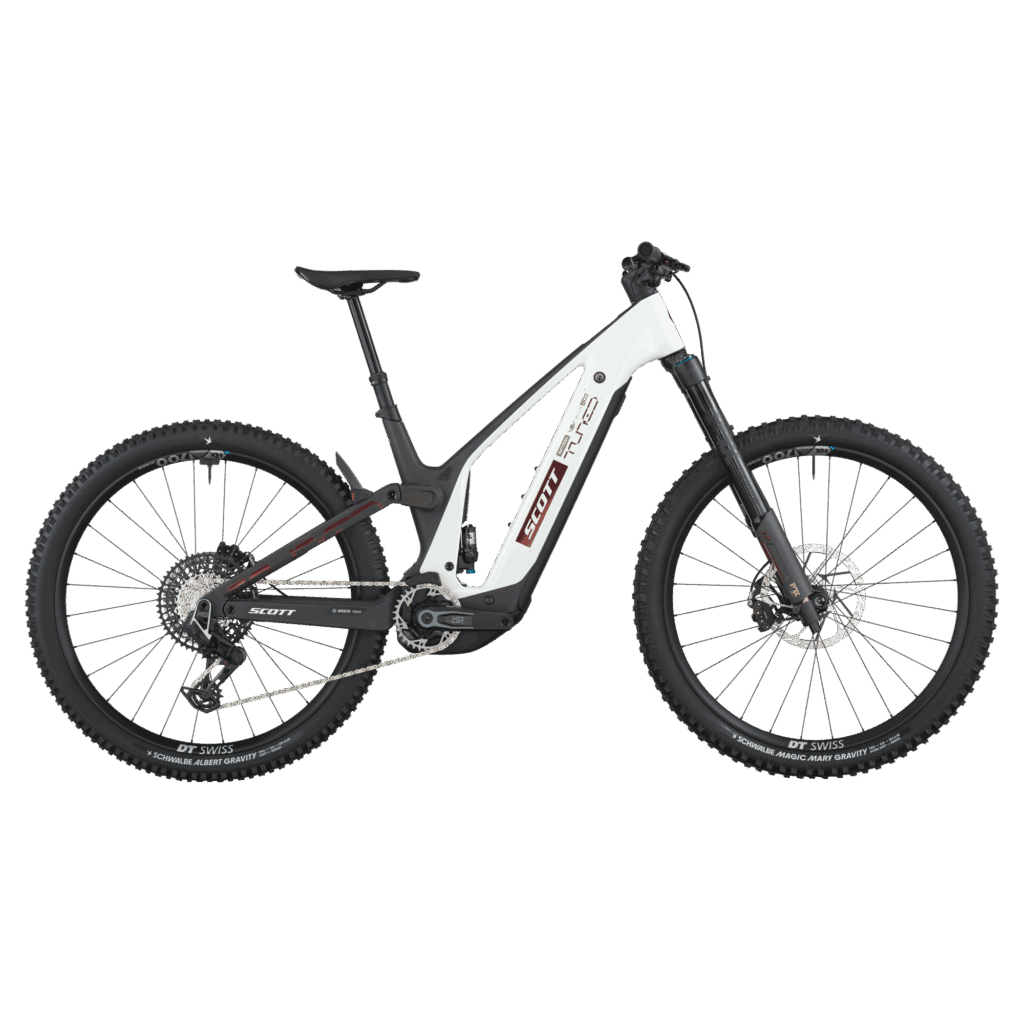

SCOTT Patron ST 900 Tuned 2026 E-Mtb

The Patron eRIDE ST 900 TUNED: For when you really, really want to go big.
Put the Super on a super trail with its 170 mm front travel, 150 mm rear travel with piggyback shock, TracLoc system for precise on-the-fly adjustment, and its biggest tires.
With Bosch battery power up to 1050 Wh (800 + 250 Wh), the Patron has the largest combined battery capacity ever seen on a SCOTT eMTB. So you can bet it’s ready for the longest and most demanding rides. Add ABS Pro, top specs and tires and you’ll be ready for anything. Be your own shuttle with the Patron ST.

Scott Patron ST 900 Tuned Technical Specifications.

• Frame

  Carbon Frame, Integrated Suspension Technology
  Virtual 4 Link kinematic, Adjustable head angle
  Syncros Cable Integration System
  Bosch Smart System, UDH Interface, 12x148mm with 55mm Chainline, Bosch PowerMore Ready

• Excursion

  Front: 170mm, Rear: 150mm

• Fork

  FOX Podium Factory Grip X2 Air, Kashima
  44mm offset, tapered steerer
  HSC – LSC – HSR- LSR adjustable, 20x110mm
  170mm travel

• Rear shock absorber

  FOX FLOAT X Factory EVOL Trunnion
  Kashima, SCOTT custom tune, LSR, 2 Pos Lever, LSC, T185X55mm

• Engine

  EU: 25kmh, INT: 20mph
  Bosch Performance Line CX-R (BDU386Y)

• Battery

  PowerTube 800Wh

• Screen

  Bosch Kiox 400C, Mini Remote

• Charger

  4A Charger

• Rear Derailleur

  Wireless Electronic Shift System
  SRAM X0 Eagle AXS Transmission 12 Speed

• Shift Levers

  SRAM AXS Rocker Pod Controller

• Crankset

  SRAM X0 Eagle, Alloy

• Chain guides

  e*thirteen, e*spec Slider

• Sprocket

  SRAM Eagle Transmission 34T chainring

• Chain

  SRAM CN GX Eagle Transmission

• Cassette

  SRAM GX Eagle XS 1275 Transmission 10-52

• Brakes

  SRAM Maven Silver Stealth 4-Piston Disc

• Brake Disc

  Front: HS2 6bolt 220mm, Rear: HS2 6bolt 200mm

• Handlebar

  Syncros Hixon iC Carbon, Size S & M 15mm rise, Size L & XL 25mm rise
  back sweep 8°, 780mm
  Syncros Endurance lock-on grips

• Seatpost

  Syncros Duncan Dropper Post 1.5s, Travel Adjust, 31.6mm
  S size 140mm, M size 180mm, L size 180mm, XL size 210mm

• Saddle

  Syncros Tofino-E 1.5 Regular
  Titanium rails

• Headset

  Stainless, +-0.6° head angle adjustment
  Syncros – Acros Angle adjust & Cable Routing HS System
  ZS56/28.6 – ZS56/40 MTB

• Wheels

  DT Swiss HX1700, IS
  F: 20x110mm, R: 12x148mm Boost
  30mm Tubeless ready rim 28H
  Syncros Axle w/Removable Lever with Tool

• Front tire

  Schwalbe Magic Mary 29×2.5″, Gravity, Radial, Ultra Soft, Tubeless ready
  120TPI Foldable Bead

• Rear tire

  Schwalbe Albert 29×2.5″, Gravity, Radial, Soft, Tubeless ready
  120TPI Foldable Bead

• Lights

  Syncros integrated rear fender light
  Front Light Cable pre-installed

• Extra

  SRAM AXS Extension Cord

• Weight in kg (approx.)

  24.4

• Weight in lbs (approx.)

  53.79

• Total weight

  130kg
  Total weight includes bike, rider, equipment, and potentially additional luggage
