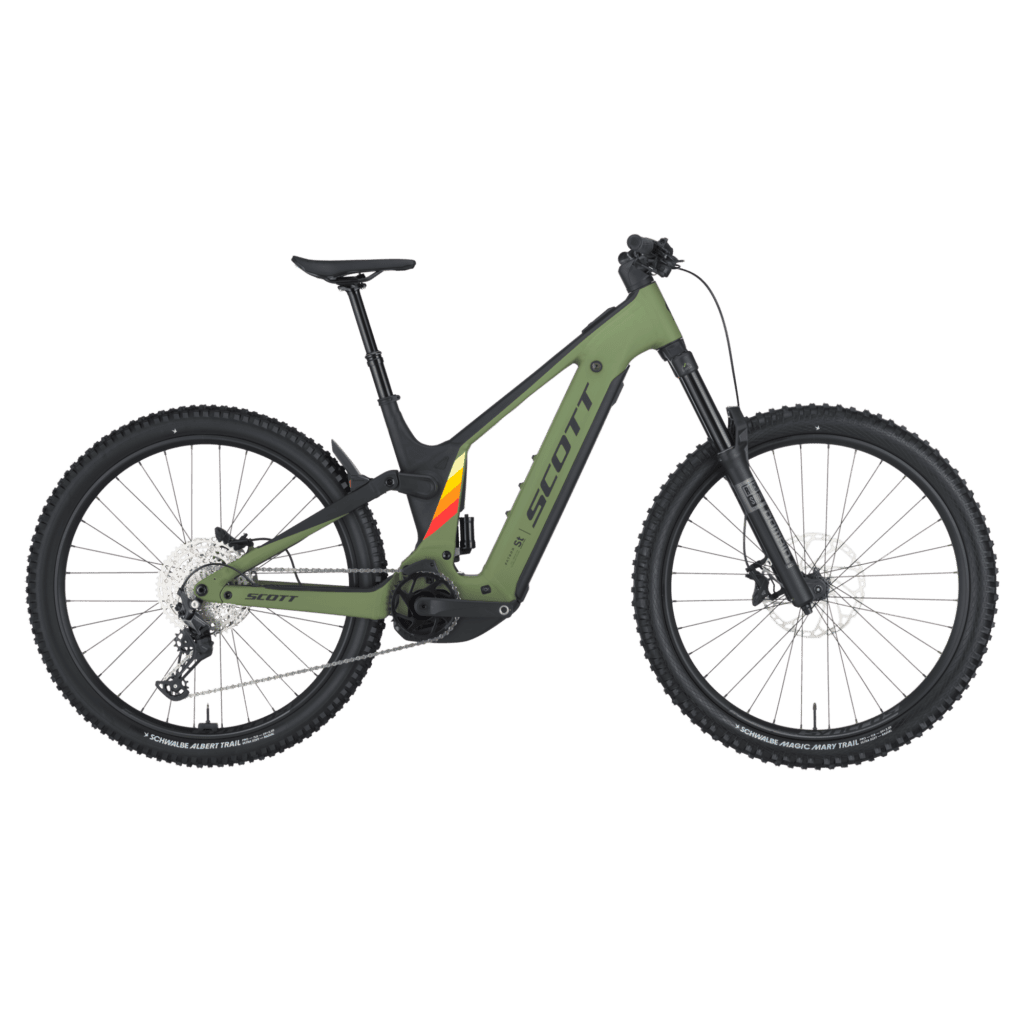

Scott Patron ST 910 E-mtb NEW

• Frame

  Alloy Frame
  Integrated Suspension Technology
  Virtual 4 Link kinematic / Adjustable head angle
  Syncros Cable Integration System
  Bosch Smart System / UDH Interface / 12x148mm with 55mm Chainline
  Bosch PowerMore Ready

• Excursion

  Front: 170mm / Rear: 150mm

• Fork

  RockShox Domain R Air / E-Bike / Reb Adj. / QR Axle 15x110mm axle
  44mm offset / tapered steerer / 170mm travel

• Rear Shock Absorber

  RockShox SuperDeluxe Piggy Back Trunnion / Reb Adj. / Large Air volume / Travel 150-100-Climb / T185X55mm

• Motor

  Bosch Performance CX
  EU: 25kmh / INT: 20mph

• Battery

  PowerTube 800Wh

• Screen

  Bosch System Controller
  Mini Remote

• Charger

  4A Charger

• Rear Derailleur

  Shimano Deore RD-M6100 SGS
  Shadow Plus / 12 Speed

• Gearshifts

  Shimano Deore SL-M6100-IR / Rapidfire Plus

• Crankset

  FSA Alloy

• Chain guide

  e*thirteen / e*spec Slider

• Sprocket

  FSA 12Speed 34T chainring

• Chain

  Shimano CN-M6100

• Cassette

  Shimano CS-M6100 / 10-51

• Brakes

  Shimano Deore M6120 4-Piston Disc

• Brake Disc

  Front: SM-RT64 CL 220mm / Rear: SM-RT64 CL 203mm

• Handlebars

  Syncros Hixon 2.0 Alloy 6061
  Size S & M 15mm rise / Size L & XL 25mm rise / back sweep 8° / 780mm
  Syncros Endurance lock-on grips

• Stem

  Syncros AM 2.0
  Syncros Cable Integration System
  4° rise / 6061 Alloy / 31.8mm / 1 1/8″

• Seatpost

  Syncros Duncan Dropper Post 2.5 / 31.6mm
  S size 125mm / M size 150mm / L size 170mm / XL size 200mm

• Saddle

  Syncros Tofino-E 2.5 Regular

• Headset

  Syncros – Acros Angle adjust & Cable Routing HS System / +-0.6° head angle adjustment
  ZS56/28.6 – ZS56/40 MTB

• Front hub

  Formula CL-811 / 15x110mm

• Rear hub

  Formula ECT-148M / Boost 148x12mm

• Spokes

  Stainless Black

• Rim

  Syncros MD30 / 32H / 30mm / Pin Joint
  Tubeless ready

• Front tire

  Schwalbe Magic Mary 29×2.5″
  SuperGravity / PSF / Ultra Soft
  Tubeless ready
  120TPI Foldable Bead

• Rear tire

  Schwalbe Explore 29×2.5″
  SuperGravity / PSF / Soft
  Tubeless ready
  120TPI Foldable Bead

• Lights

  Syncros integrated rear fender light
  Front Light Cable pre-installed

• Weight in kg (approx.)

  25.9

• Weight in lbs (approx.)

  57.1

• Total weight

  128kg
  Total weight includes bike, rider, equipment, and potentially additional luggage

TECHNOLOGY:

Motor and Battery
For mountain bikers looking to break new ground and ride more terrain than ever before, the Patron eRIDE packs the cutting edge of motor and full power battery technology into a package built to dominate singletrack. With the latest Bosch Performance CX drivetrain paired with the 800Wh Powertube battery, the Patron is the ticket to freedom in the mountains.

Handlebar display

The Kiox 300 and LED Mini Remote provide connectivity and visibility on the handlebars. The Kiox is a colorful 2” screen that shows important information such as speed, GPS, cadence, and Bluetooth connection to the eBike Flow app. If you prefer, you can remove the screen and use the LED remote or your phone to control everything. The LED remote control shows the charging status and allows you to easily change modes. A light sensor automatically adjusts the brightness of the LEDs. To avoid distractions, ST models offer only the Mini Remote and the system controller, without the screen. However, all parameters can be monitored and displayed via a cycling computer of your choice.
