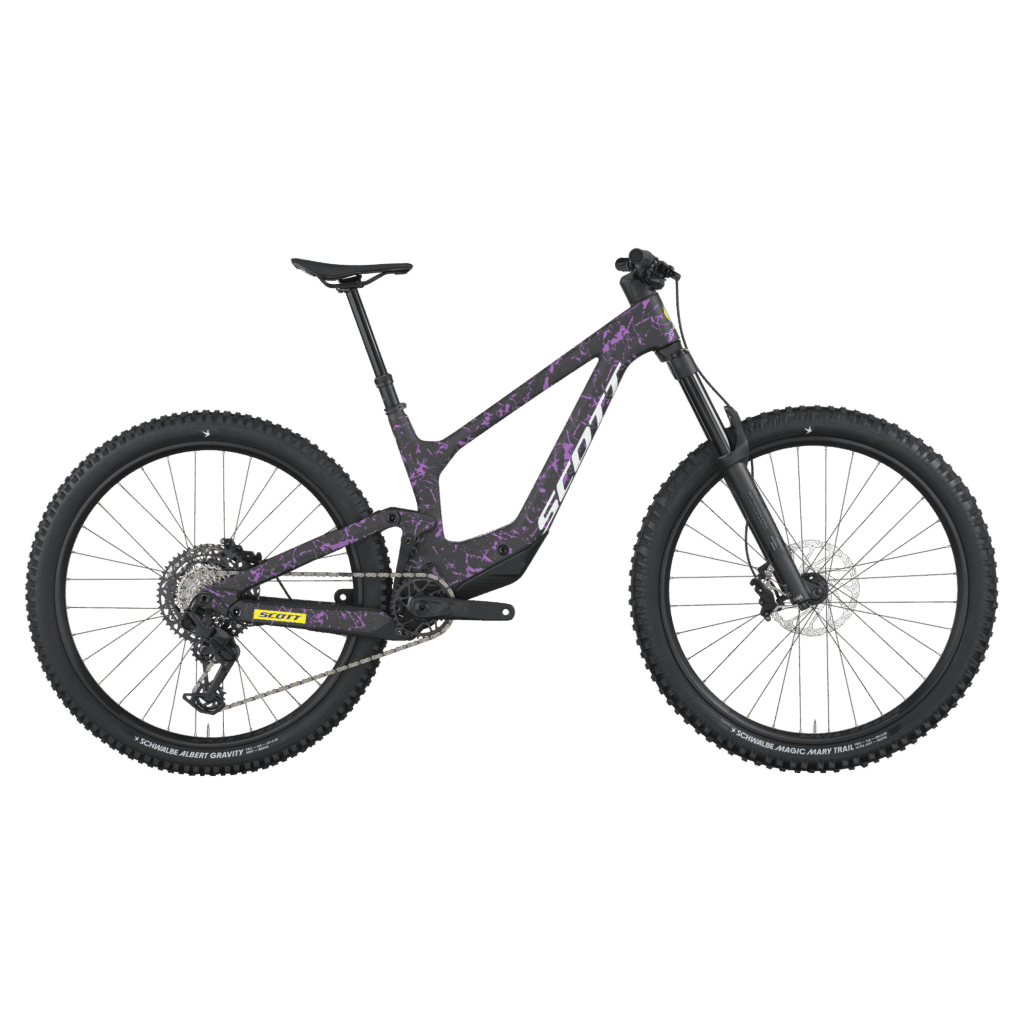

SCOTT Ransom 920 2026

Meet the SCOTT Ransom. Our latest version of the Ransom is uncompromisingly designed to give maximum downhill performance and a ride that always inspires confidence. Apt geometry and incredible suspension kinematics result in a bike that will never say “no.” Don’t hold back, you deserve a Ransom!

SCOTT RANSOM 920 TECHNICAL SPECIFICATIONS

• Frame

  Ransom Carbon HMF Mainframe with Alloy 6061 Swingarm
  Integrated Suspension Technology, 6 Link kinematic, Adjustable head angle
  Syncros Cable Integration System
  BB92, UDH Interface, 12x148mm with 55mm Chainline, MX Ready

• Fork

  Marzocchi Z1, Rail 3 , LSC-LSR adjustable, 15x110mm, 44mm offset, Tapered steerer, 170mm travel

• Rear Shock Absorber

  Marzocchi Bomber Air, Scott Custom Tuned, Comp & Reb adjust, T205x65mm, 170mm travel

• Rear Derailleur

  SRAM Eagle 70 Transmission 12 Speed

• Shift Levers

  SRAM Eagle 70 Trigger

• Crankset

  SRAM Eagle 70 Transmission
  DUB, 55mm CL, 34T

• Chain guide

  SCOTT custom

• Bottom Bracket

  SRAM DUB PF 92 MTB Wide, shell 41x92mm

• Chain

  SRAM CN Eagle 70 Transmission

• Cassette

  SRAM Eagle XS 1270 V2 Transmission 10-52

• Brakes

  SRAM DB8 Stealth 4 Piston Disc

• Brake Disc

  SRAM Centerline Rotors F&R 200mm

• Handlebars

  Syncros Hixon 2.0 Alloy 6061 D.B.
  Size S & M 12mm Rise, Size L & XL 20mm Rise, back sweep 8°, 780mm
  Syncros AM lock-on grips

• Handlebar stem

  Syncros AM 2.0
  Syncros Cable Integration System
  4° rise, 6061 Alloy, 31.8mm, 40mm

• Seatpost

  Syncros Duncan Dropper Post 1.5S, Travel Adjust, 31.6mm
  S size 140mm, M size 180mm, L & XL size 210mm

• Saddle

  Syncros Tofino 2.0
  Crmo Rails

• Headset

  Syncros – Acros Angle adjust & Cable Routing HS System
  +-0.6° head angle adjustment
  ZS56/28.6 – ZS56/40 MTB

• Front hub

  Formula SCT-1905, 110x15mm, thru axle

• Rear hub

  Formula SCT-1910
  148x12mm thru axle, sealed bearings

• Spokes

  Stainless Black 15G, 1.8mm

• Rim

  Alexrims MD30 Disc, 32H black, 30mm, Tubeless Ready

• Front tire

  Schwalbe Magic Mary 29×2.5″, Trail, Radial, Ultra Soft, Tubeless ready
  120TPI Foldable Bead

• Rear tire

  Schwalbe Albert 29×2.5″, Gravity, Radial, Soft, Tubeless ready
  120TPI Foldable Bead

• Accessories

  Syncros IS Matchbox Kit
  Syncros Multi-tool Matchbox 8

• Weight in kg (approx.)

  16.64 (Tubless setup without matchbox IS )

• Weight in lbs (approx.)

  36.68 (Tubless setup without matchbox IS )

• Total weight

  130kg
  Total weight includes bike, rider, equipment, and potentially additional luggage
