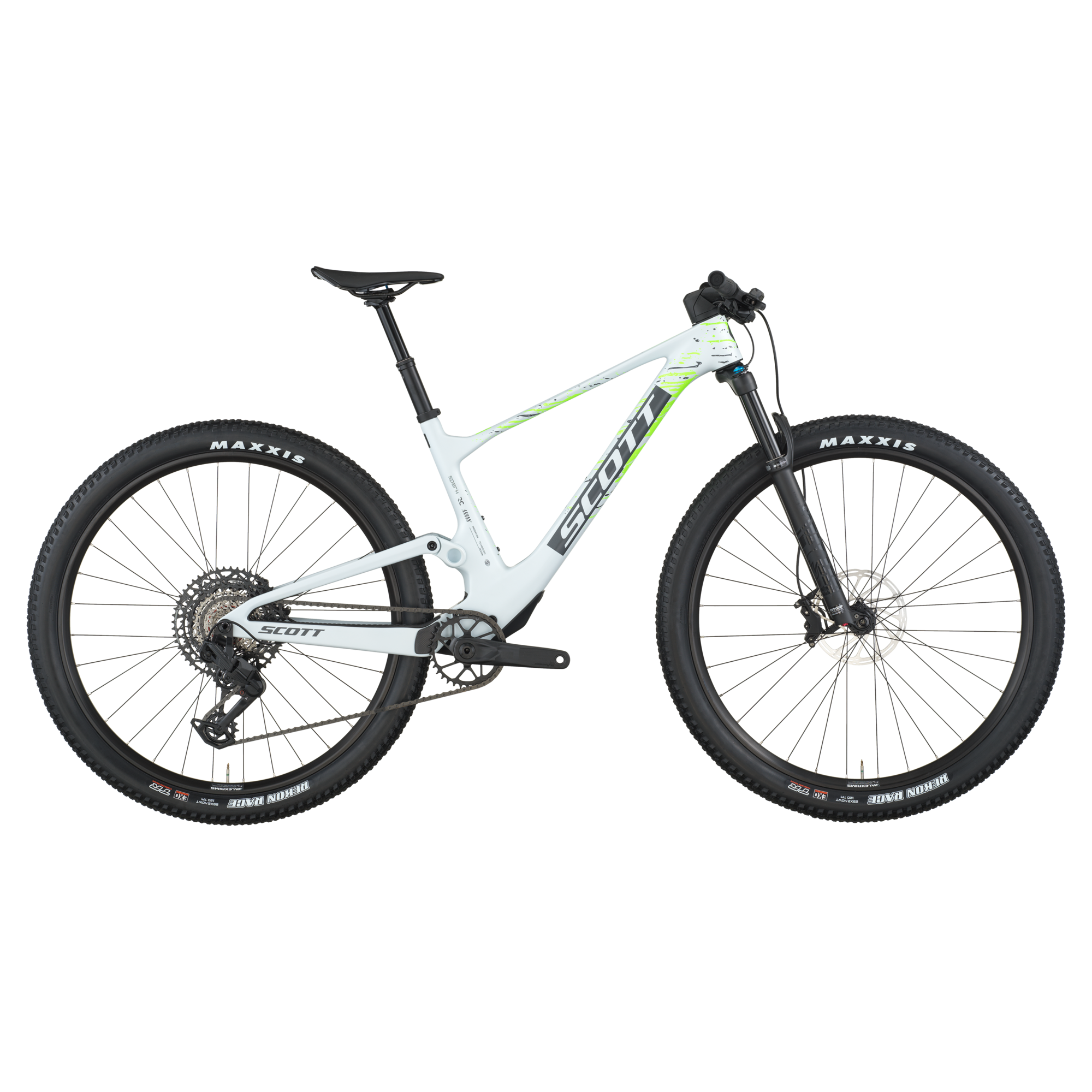

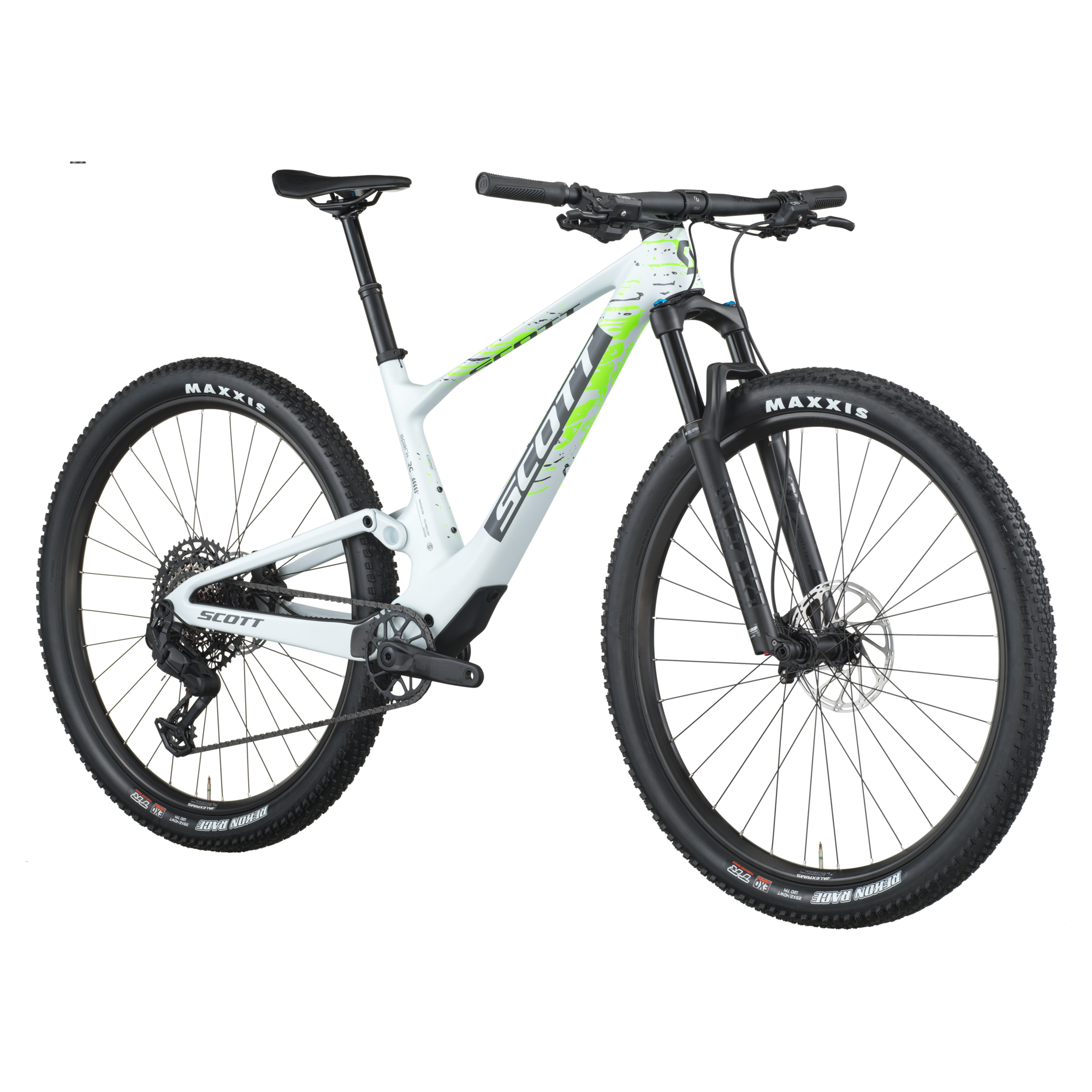

SCOTT Spark RC Comp – Cross Country

The Spark RC Comp is the perfect mix of the best carbon engineering, unprecedented levels of integration, and just the right amount of secrecy. We wanted to make this model the fastest ever, both uphill and downhill. By increasing the travel, refining the geometry, and applying feedback from the world’s best athletes, we created the best cross country race bike. If you believe speed is fun, you will love this bike.

TECHNICAL SPECIFICATIONS SCOTT SPARK RC COMP

• Frame

  Spark RC Carbon HMF
  Integrated Suspension Technology
  Flex Pivot, Adjustable head angle
  Syncros Cable Integration System
  BB92, UDH Interface, 12x148mm with 55mm Chainline

• Fork

  FOX 32 Float Rhythm Grip
  3-Modes, Kabolt 15x110mm axle, 44mm offset, tapered steerer
  Reb. Adj., Lockout, 120mm travel

• Rear Shock Absorber

  FOX Float LV Custom EVOL Performace Trunnion.
  3 modes, Lockout-Trail-Descend
  DPS, Reb. Adj.
  Travel 120mm, T165X45mm

• remote control

  SCOTT TwinLoc Technology
  Suspension & Dropper Remote
  3 Suspension modes

• Rear Derailleur

  SRAM Eagle 70 Transmission 12 Speed

• Gearshifts

  SRAM Eagle 70 Trigger

• Crankset

  SRAM Eagle 70 Transmission
  DUB, 55mm CL, 34T

• Chain guide

  SCOTT custom

• Bottom Bracket

  SRAM DUB PF 92 MTB Wide, shell 41x92mm

• Chain

  SRAM CN Eagle 70 Transmission

• Cassette

  SRAM Eagle XS 1270 V2 Transmission 10-52

• Brakes

  SRAM DB4 4-Piston Disc

• Brake Disc

  SRAM Centerline CL Rotors 180/F and 160/R

• Handlebars

  Syncros Fraser 2.0 XC Alloy 6061 D.B.
  Flat Bar, 8°, 740mm, Syncros Performance XC lock-on grips

• Handlebar stem

  Syncros XC 2.0
  Syncros Cable Integration System
  -12° rise, 6061 Alloy, 31.8mm, 1 1/8″

• Seatpost

  Syncros Duncan Dropper 1.5XC, 31.6mm, all sizes 100mm

• Saddle

  Syncros Belcarra V2.0 Cut Out
  CRMO rails

• Headset

  Syncros – Acros Angle adjust & Cable Routing HS System
  +-0.6° head angle adjustment
  ZS56/28.6 – ZS56/40 MTB

• Front hub

  Formula CL-811, 15x110mm

• Rear hub

  Formula CL-148S, 12x148mm
  Syncros Axle w/Removable Lever
  with 6mm Allen, T30 and T25 Tools

• Spokes

  Stainless Black 15G, 1.8mm

• Rim

  Syncros X-30SE, 32H, 30mm
  Tubeless ready

• Front tire

  Maxxis Rekon Race, 29×2.4″, 120TPI Foldable Bead
  Tubeless Ready, EXO

• Rear tire

  Maxxis Rekon Race, 29×2.4″, 120TPI Foldable Bead
  Tubeless Ready, EXO

• Weight in kg (approx.)

  12.8 (Tubeless setup)

• Weight in lbs (approx.)

  28.22 (Tubless setup)

• Total weight

  130kg
  Total weight includes bike, rider, equipment, and potentially additional luggage
