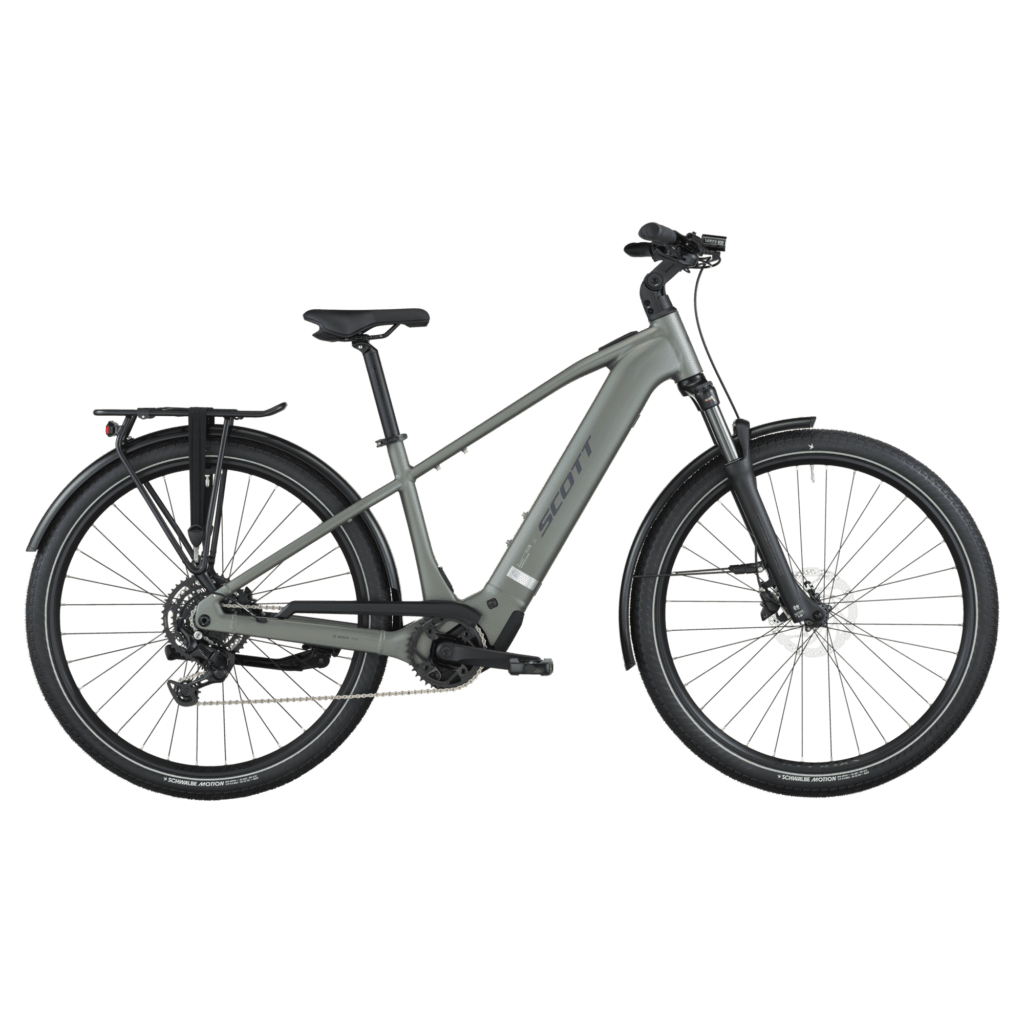

SCOTT Sub Sport 30 2026 Urban Ebike

Enjoy easy riding and traffic-free commuting with the Sub Sport 30 urban e-bike. With its strong and versatile Bosch motor and intuitive handling, it is a comfortable and safe way to leave cars behind and embrace life on two wheels.

We designed Sub Sport 30 to offer balanced riding characteristics that make it natural to pedal and easy to navigate on any route around town. Combined with Bosch’s Performance motor unit and 540 Wh range, the motor can move around town extremely quietly and provide enough range for longer rides or multi-stop errands.

Power arrives smoothly with acceleration that feels natural. In addition, multiple modes allow you to precisely select the assistance you’ll need in any situation or manage battery life between charges.

The Sub Sport can carry up to 25 kg on the rear rack (including an optional child seat). It is equipped with a front fork to smooth out the toughest sections on the trail, and a 9-speed Shimano drivetrain to easily handle any terrain on your map.

SCOTT SUB SPORT 30 DATA SHEET

• Frame

  Alloy S-XL=29″, 6061 Alloy custom butted tubing
  Side extraction battery
  UDH Interface, 12x148mm with 52mm Chainline

• Excursion

  100mm

• Fork

  SR Suntour NVX 32 5TA NLO Coil, Tapered, 5×100 TA, Lock Out, 100mm Travel

• Motor

  Bosch Performance Line (BDU346Y)
  EU: 25kmh

• Battery

  PowerTube 540Wh

• Screen

  Bosch Purion 200

• Charger

  2A Charger

• Gearshifts

  Shimano CUES RD-U4000GS 9 Speed

• Crankset

  FSA CK-220 170mm

• Chain guide

  Syncros

• Sprocket

  FSA 38T

• Chain

  Shimano LG500

• Cassette

  Shimano CS-LG3009 11-46 T

• Brakes

  Shimano BR-MT200 Disc

• Brake Disc

  Front: SM-RT30 CL 180mm, Rear: SM-RT30 CL 160mm

• Handlebars

  Syncros UC3.0 680mm, Rise 12mm, Backsweep 15°

• Handlebar stem

  Syncros UC 3.0 adjustable with front light mount

• Seatpost

  Syncros 3.0, 31.6mm, 350mm

• Saddle

  Syncros Capilano

• Headset

  Acros, 1.5″- 1.5″
  semi-integ. OD 50/61mm, ID 44/55mm

• Front hub

  Shimano HBQC400B58LL, 5x100mm

• Rear hub

  Shimano FHTC500HMBB, 148x12mm

• Spokes

  Black Spokes

• Rim

  Syncros X18 Disc

• Front tire

  Schwalbe Big Apple Performance, 55-622

• Rear tire

  Schwalbe Big Apple Performance, 55-622

• Lights

  Front Lezyne Hecto E65
  Rear Super Bright Lezyne Light

• Racktime carrier

  Racktime carrier SnapIt 2.0 25KG

• PEDALS

  Marwi SP-828

• Weight in kg (approx.)

  27.6

• Weight in lbs (approx.)

  60.85

• Total weight

  160kg
  Total weight includes bike, rider, equipment, and potentially additional luggage
