Frame
Aluminum frame, 4-bar linkage, Bosch Smart System, UDH interface, 12×148 mm thru-axle with 55 mm chainline, compatible with Bosch PowerMore.
Travel
- Front: 150 mm
- Rear: 150 mm

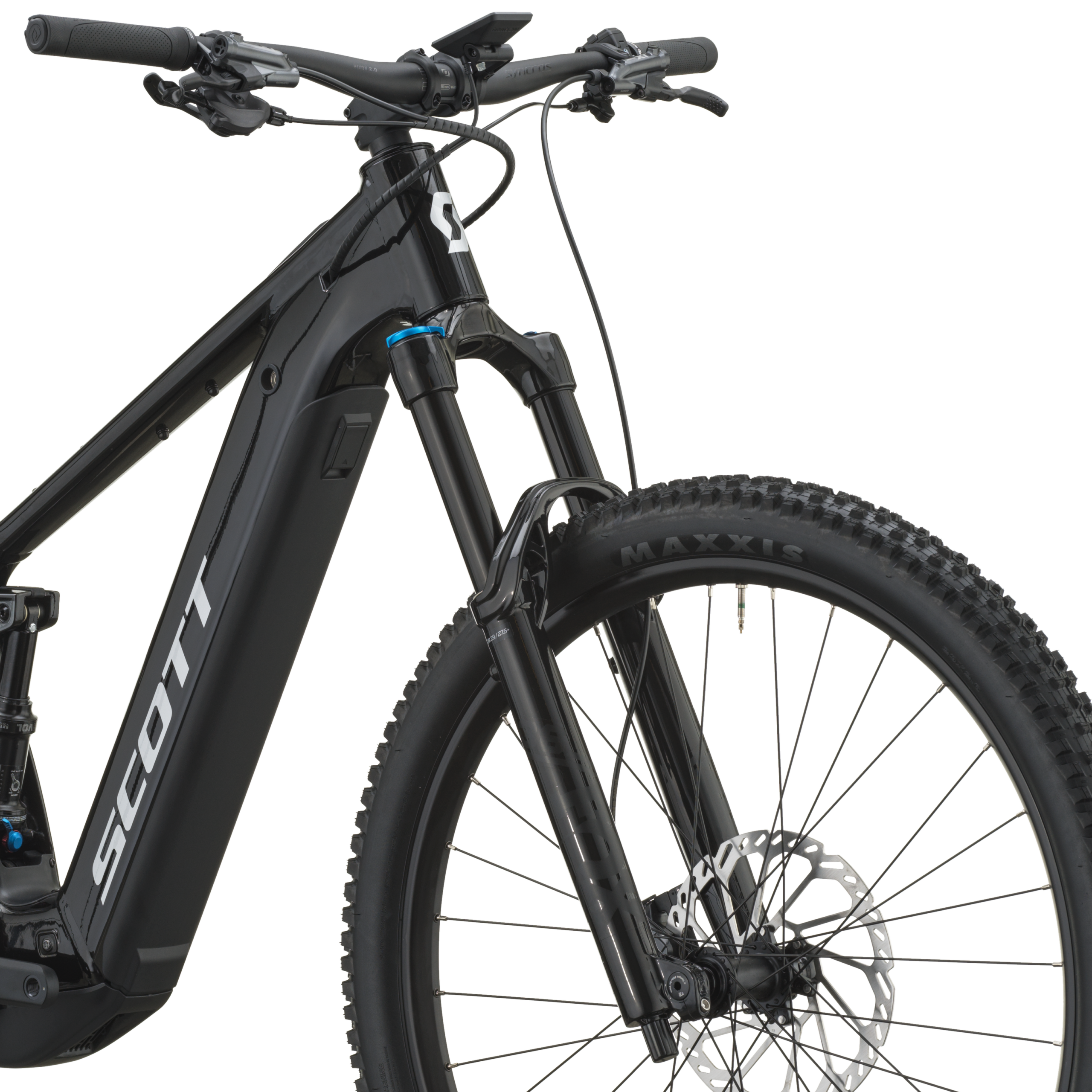

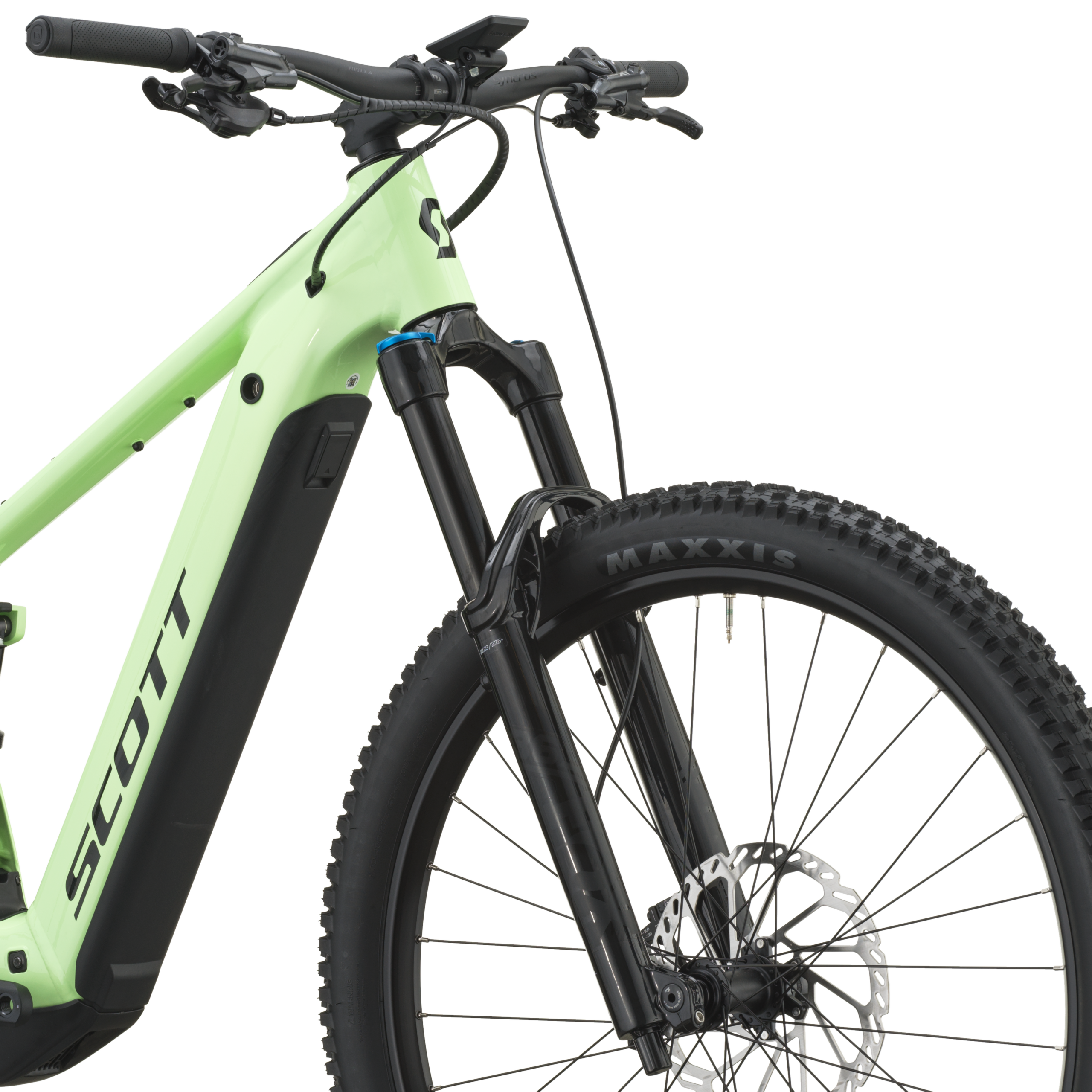

Fork
Fox 36 Rhythm, eOptimized, Grip cartridge, compression and rebound adjustment, 15×110 mm thru-axle, tapered steerer tube.
Rear Shock
Fox Float Rhythm LV EVOL, LSR rebound adjustment, 2-position lever.

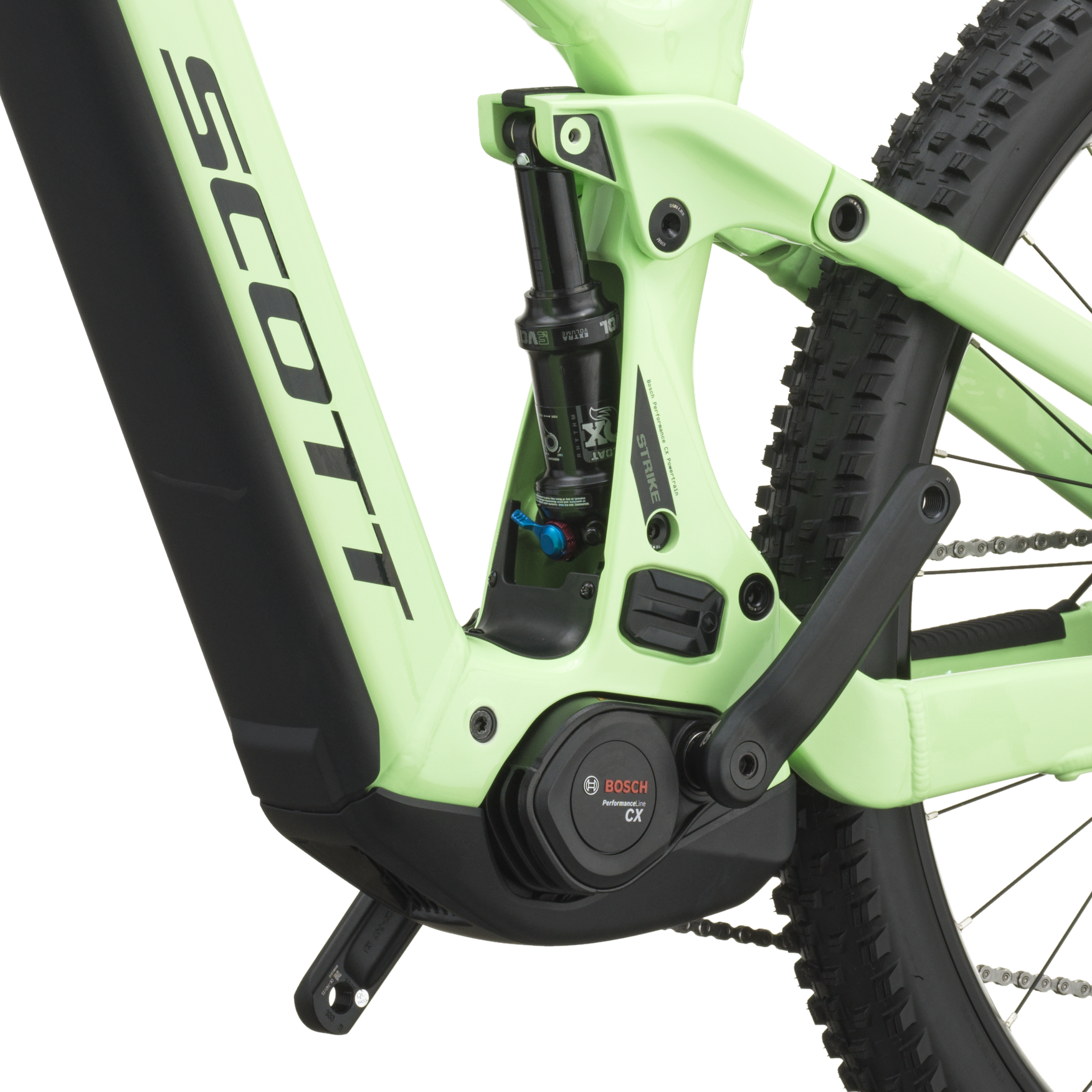

Motor
Bosch Performance Line CX (BDU384Y)
Battery
Bosch PowerTube 800 Wh
Display
Bosch Intuvia 200
Charger
Bosch 4A, 230 V

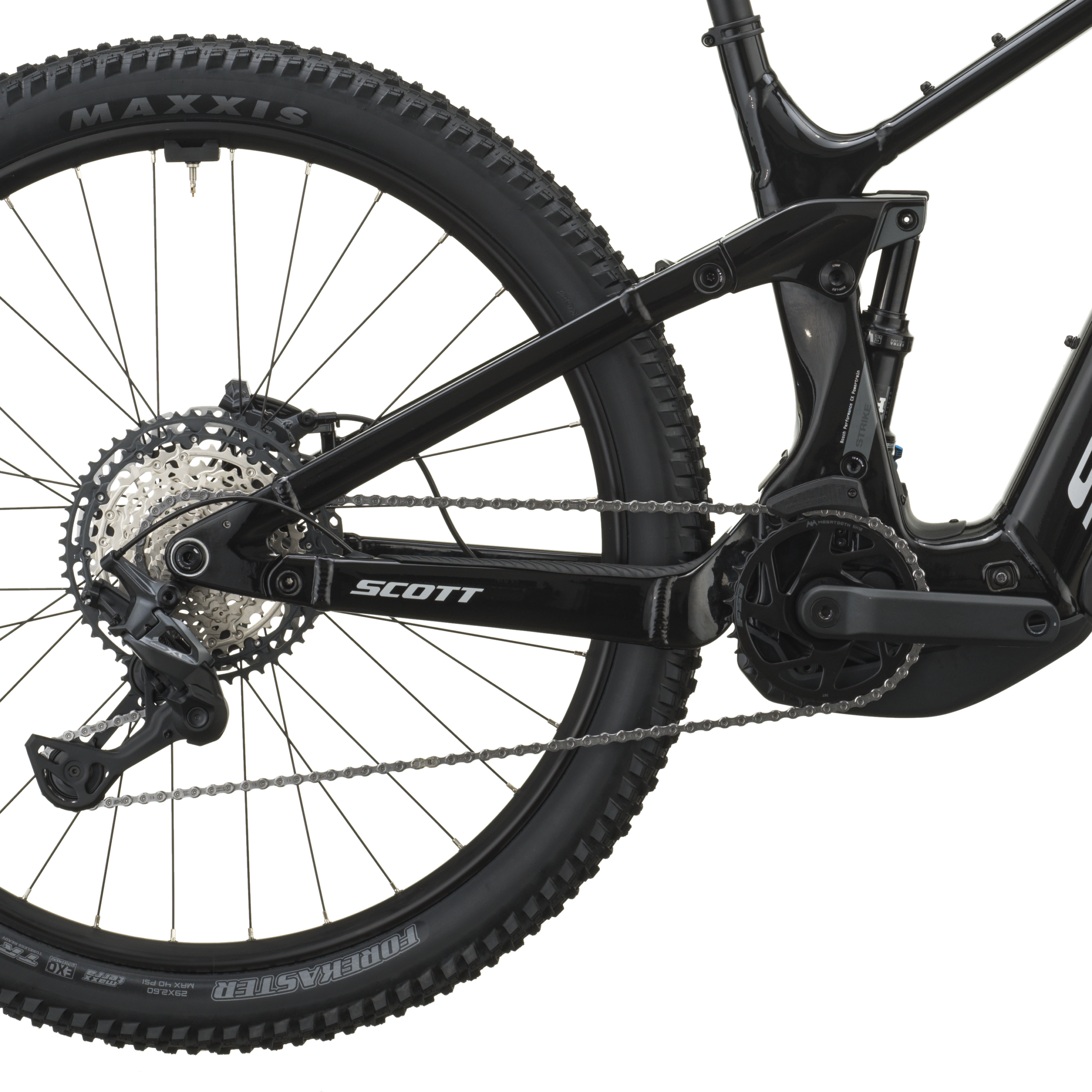

Rear Derailleur
Shimano XT RD-M8200, 12-speed
Shift lever
Shimano Deore XT SL-M8210
Crankset
FSA aluminum
Chain guide
ethirteen especSlider
Chainring
FSA 12-speed, 36 teeth, Direct Mount
Chain
Shimano CN-M6100
Cassette
Shimano XT CS-M8200, 10–51 teeth
Brakes
Shimano XT BR-M8220, 4-piston
Front Brake Rotor
Shimano RT-CL750, 220 mm
Rear brake rotor
Shimano RT-CL750, 200 mm
Grips
Syncros Comfort Lock-On
Handlebar
Syncros Hixon 2.0, 6061 aluminum, double-wall, 12 mm rise, 8° drop, 780 mm width.
Handlebar stem
Syncros DC ST-M200-AL2, 0°, 31.6 mm.
Seatpost
Syncros SP-M302-AL2 dropper seatpost, 31.6 mm.
Saddle
DDK Vacuum Saddle
Headset
Press Fit, 1.5″, outer diameter 62 mm, inner diameter 56 mm, sealed bearings.
Front Hub
Formula CL-811, 15×110 mm
Rear Hub
Formula ECT-148M, Boost 148×12 mm
Spokes
Stainless steel, black.
Front rim
Alex Rims MD30 Disc 29″, 32-hole, black, Tubeless Ready.
Rear rim
Alex Rims MD30 Disc 29″, 32 holes, black, Tubeless Ready.
Front tire
Maxxis Forekaster 29×2.6″, 60 TPI, folding, Tubeless Ready, EXO, 3C MaxxTerra.
Rear tire
Maxxis Forekaster 29×2.6″, 60 TPI, folding, Tubeless Ready, EXO, 3C MaxxTerra.
Approximate weight
25.3 kg
Approximate weight in pounds
55.78 lb
Maximum total system weight
130 kg
The total weight includes the bicycle, rider, equipment, and any additional luggage.
